Consist of this production line:
A: Passive Decoiler |
B: Hydraulic Punching |
C: Feeding Applicator |
D: Roll Forming machine |
E: Hydraulic Cutting |
F: Output Table |
Detailed specifications of each part:
a.Passive decoiler
Max. width of coil can be loaded | 600mm |
Mandrel face length | 1000mm |
Max. weight of coil can be loaded | 4 tons |
Iner-diameter | 480-530 mm |
Max.Out diameter | 1400mm |
Material of shaft | GCr 45 steel |
Diameter of shaft | 85 mm |
b.Hydraulic punching
| Material thickness | 0.9-1.6mm |
Hydraulic pressure | 20Mpa |
Hydraulic power | 5.5 K.W |
Cutting material | Cr12,quenched 58-62 |
Cutting system | Hydraulic Die cutting |
c.Feeding applicator
Length accuracy in close loop system | +/- 0.5 mm |
Surface rust-proof treatment | decorative chromed or black coating |
Feeding panel to the guide roller | Adjustable by right and left |
Feeding roller | Diameter is 55mm |
Material | #45 steel, hard chormed.HRC48-52 |

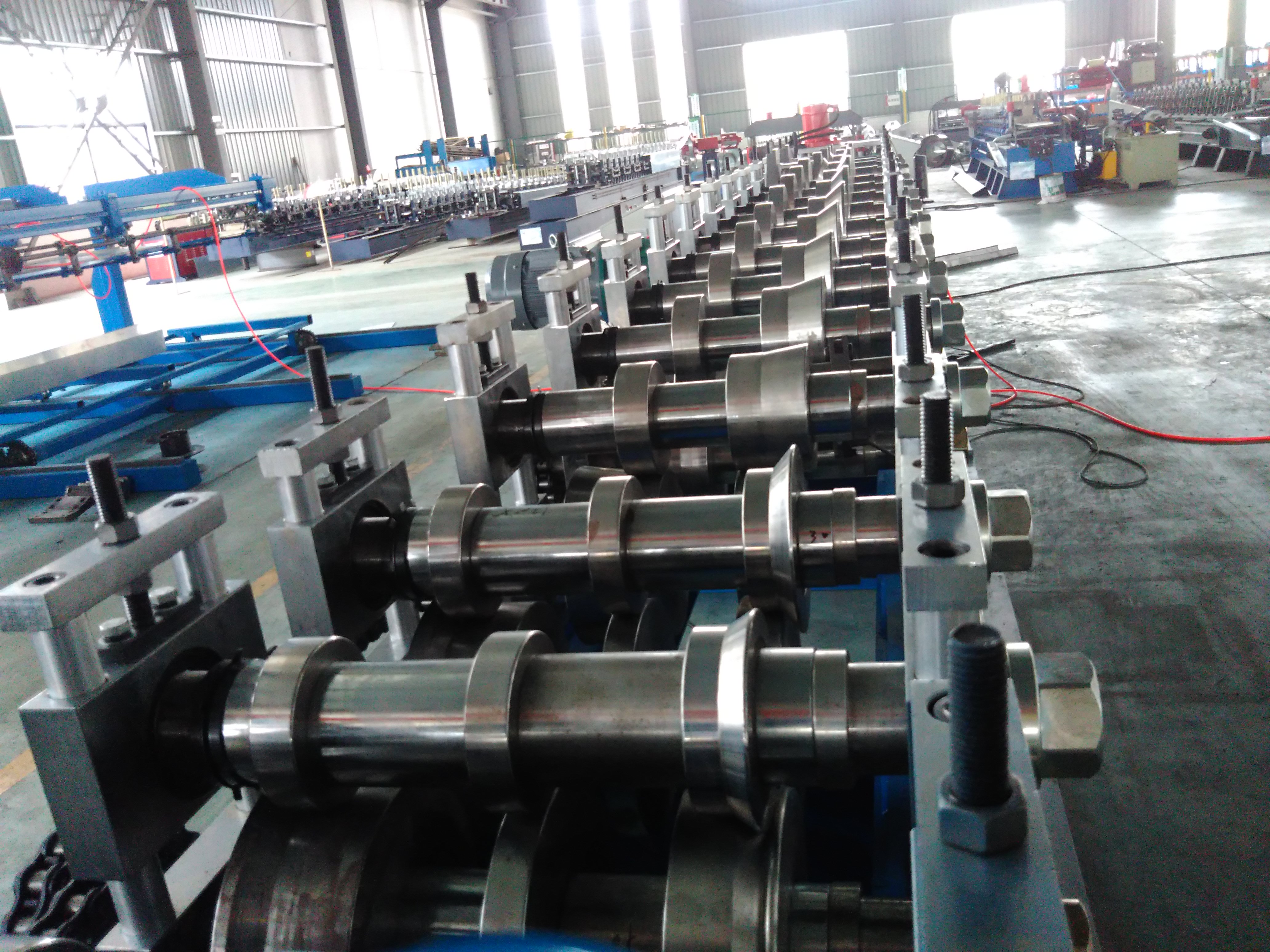

d.Roll forming unit
No. of Work Station | 16 sets |
Max. Roll shafts Dia | 75 mm |
Required Motor Capacity | 11 K.W |
Max. Line Speed | 20mtr./min(Not including cutting) |
Roller material | GCr15 steel ,hard chromed |
Transmission | Chain driving |
Bearing | HRB |
Cages | Use the strong steel nets |
Leveling screws on base | With thick metal plates |
e.Hydraulic cutting
Hydraulic pressure | 20Mpa |
Hydraulic power | 5.5 K.W |
Cutting material | Cr12,quenched 58-62 |
Cutting system | Hydraulic Die cutting |
f.Output table
Specification(L*H) | 3000mm*800mm |
Tube welded with rollers. | 2 output table |
Stacking length | According to your demands |
