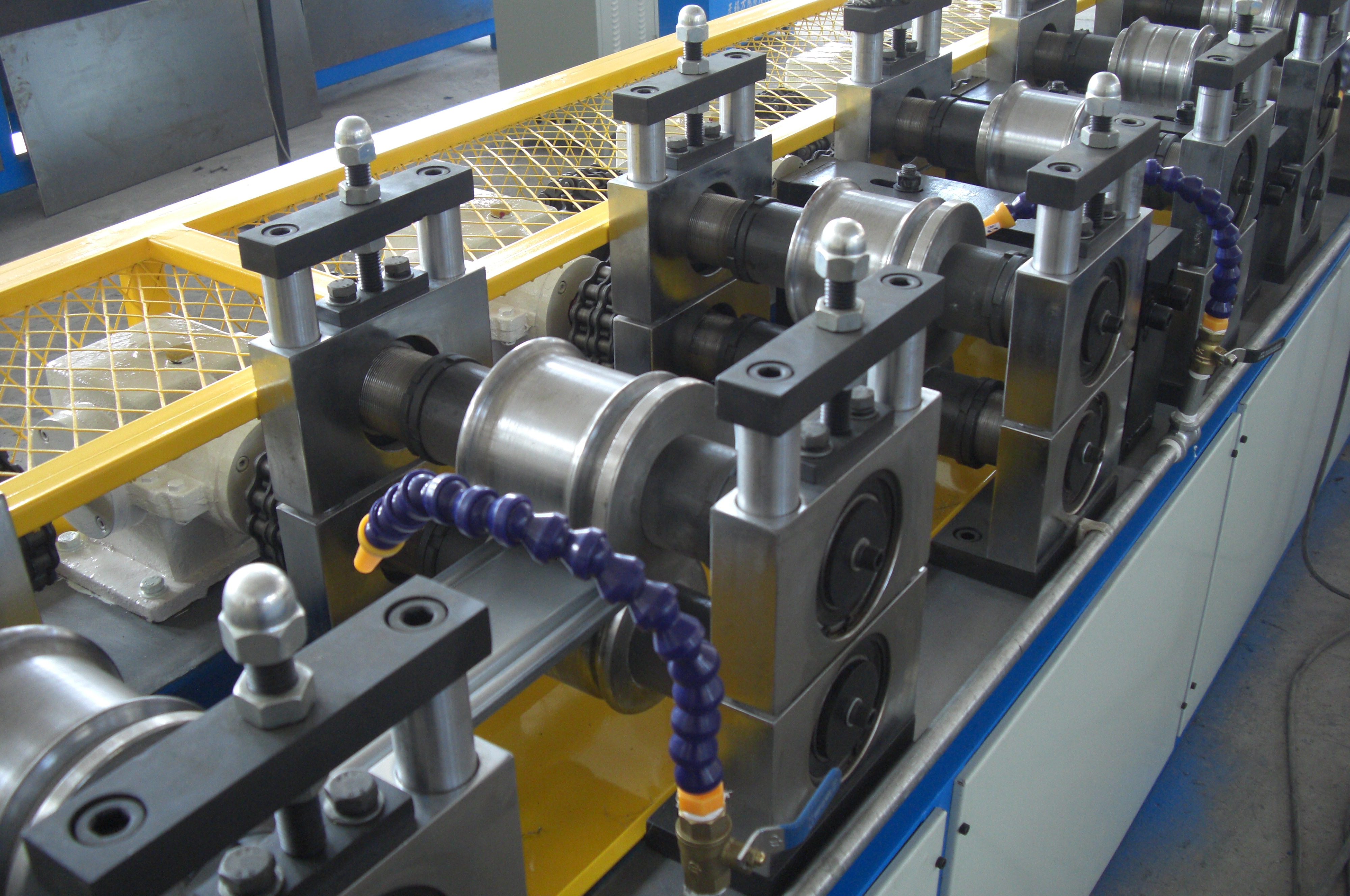

High Precision Galvanized Shutter Door Slat Roll Foming Machine

GENERAL SPECIFICATION

Line offered is Designed to process material as below:

A) Type of material:                           0.4-0.8MM THICKNESS

B) Max. Weight of Coil:                                 2000KGS

C) Material Loading/Unloading system:                         Manual

D)No. of Work Station:  12 Sets

E) Roll shafts Dia:   76mm

F)Maximum Speed:   0-20 meter/min

G)Required Motor Capacity 5.5K.W

H) Roller material:   CR12, CNC lathes, double machining, quenched 58-62

I)Transmission:   Chain drive system

J)Bearings:    Top National brand (HRB BRAND)

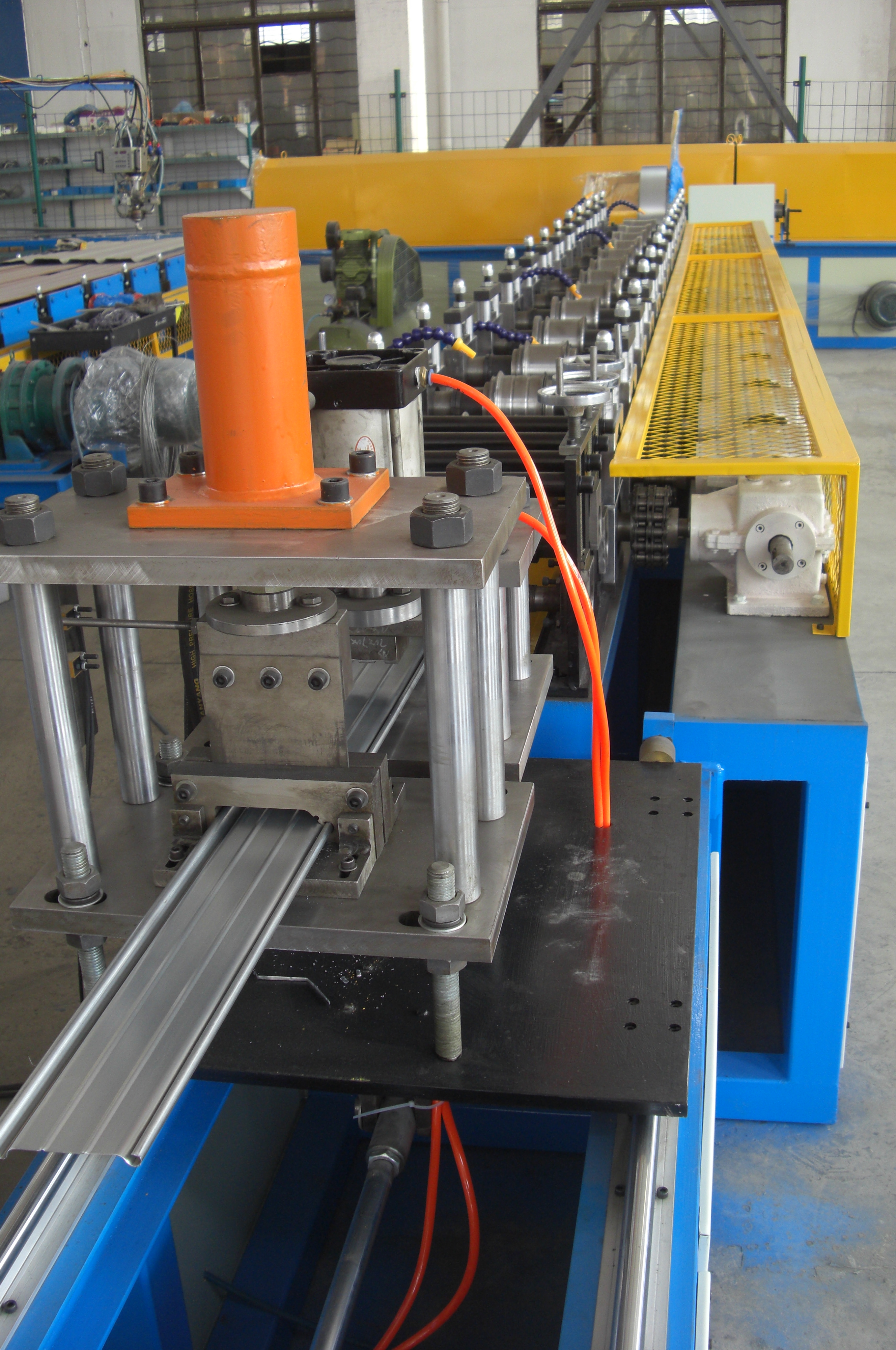

K)Cutting System:Hydraulic cutting

L)Hydraulic shear power:          3KW
