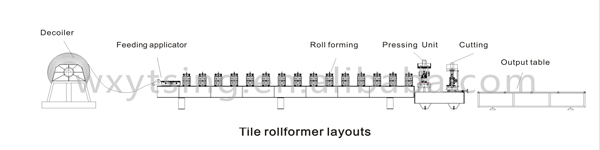

Flow chart of the tiles roll forming machine:
| Technical Data & Specification | |
| Productivity | tile sheet as the drawing |
| Man Power Required | One operator with one assinstant |
| Set Up time | 15 mins |
| Working Hours per Day | 8 to 16 |
| Number of Stations | 18 sets |
| Thickness | 0.3-0.8mm |
| Main Power | 7.5 KW |
| Shipment Packing | one 40 FT containe |
| Forming Speed | 20mtr./min(Not include shear) |
| Line Direction | Left to Right While Facing Operator Panel |
| Overall Machine Length Required | 12.6m |
| Approximate Machine Height | 1.5M |
| Complete Line Consist Of(working process) |

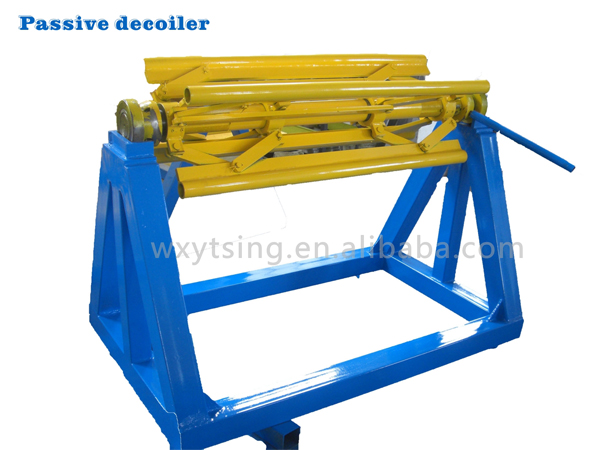

| Passive decoiler |
| Infeeding applicator |

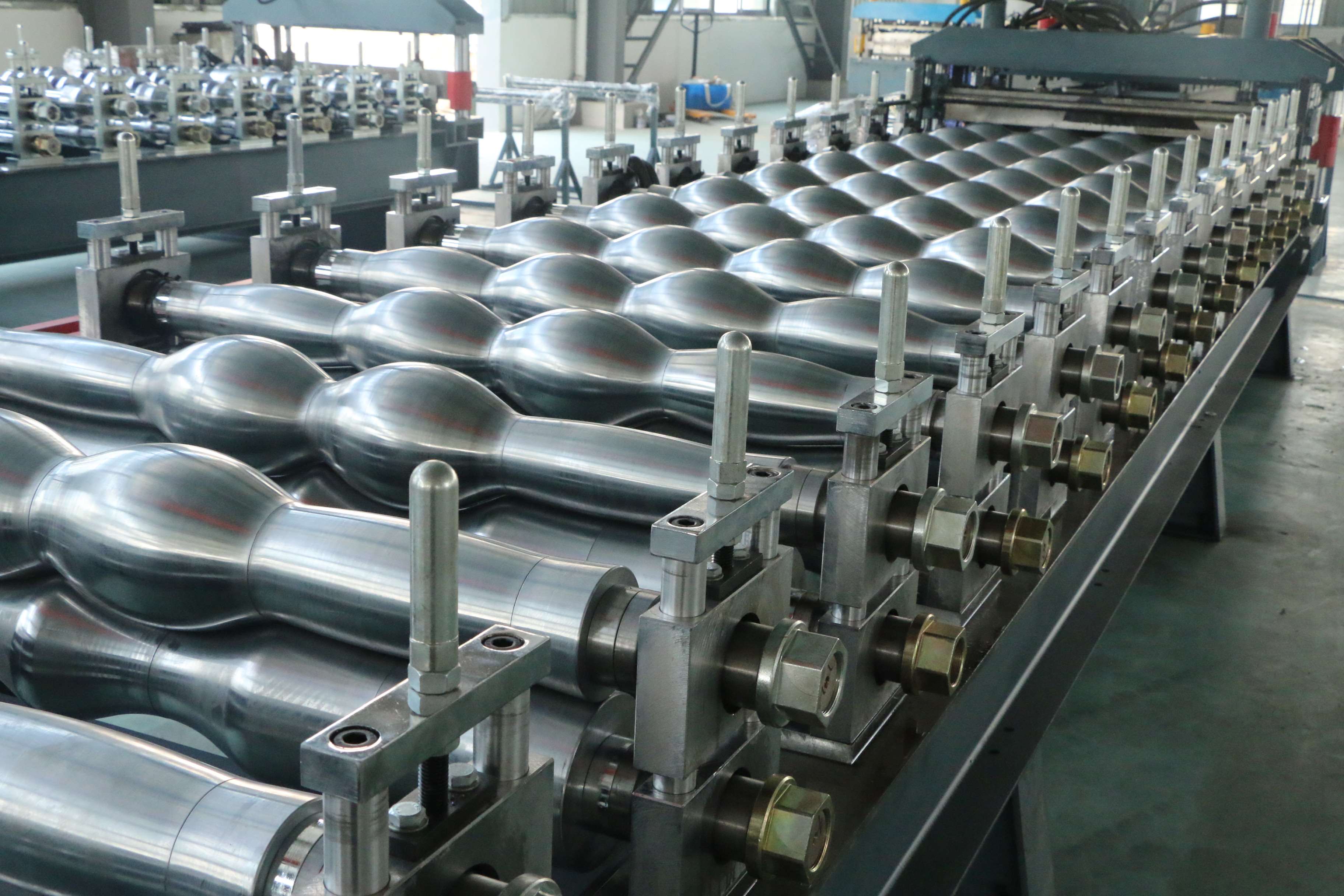

| Roll forming machine unit |
| Hydraulic press |

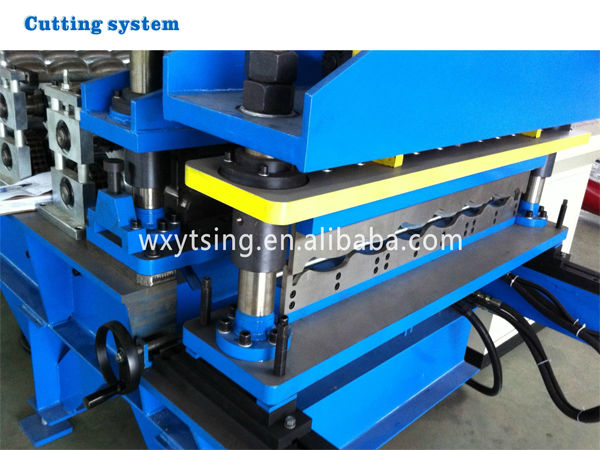

| Hydraulic shear |
| Output table |
