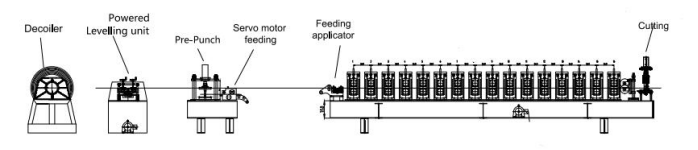

Machine Working Flow(the layout flow is for reference only)
| Parameter | ||

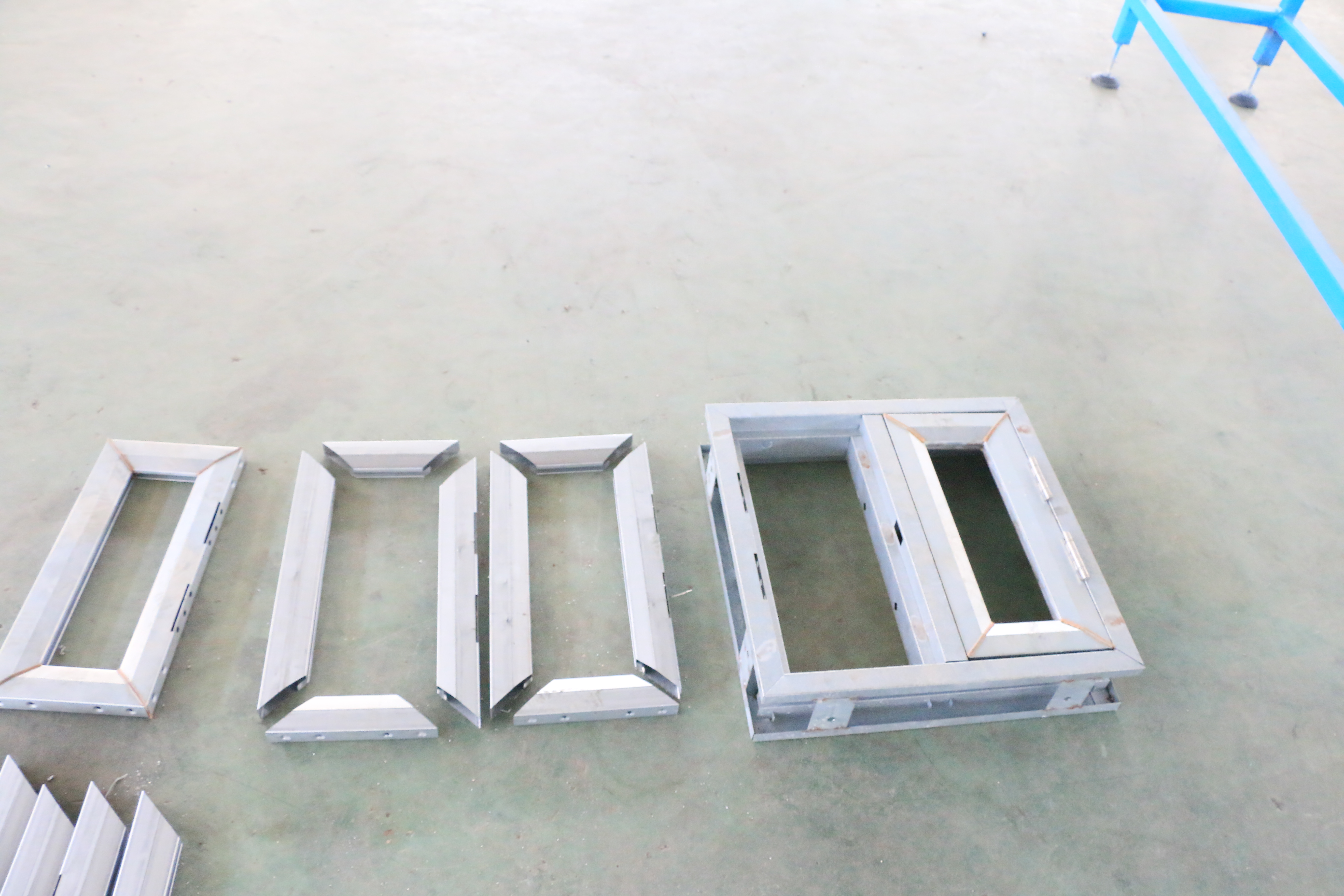

| Finished Product | Thickness | 1.2-1.6mm |
| Material | Galvanized Steel | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 4tons | |
| Mandrel expansion by | active | |

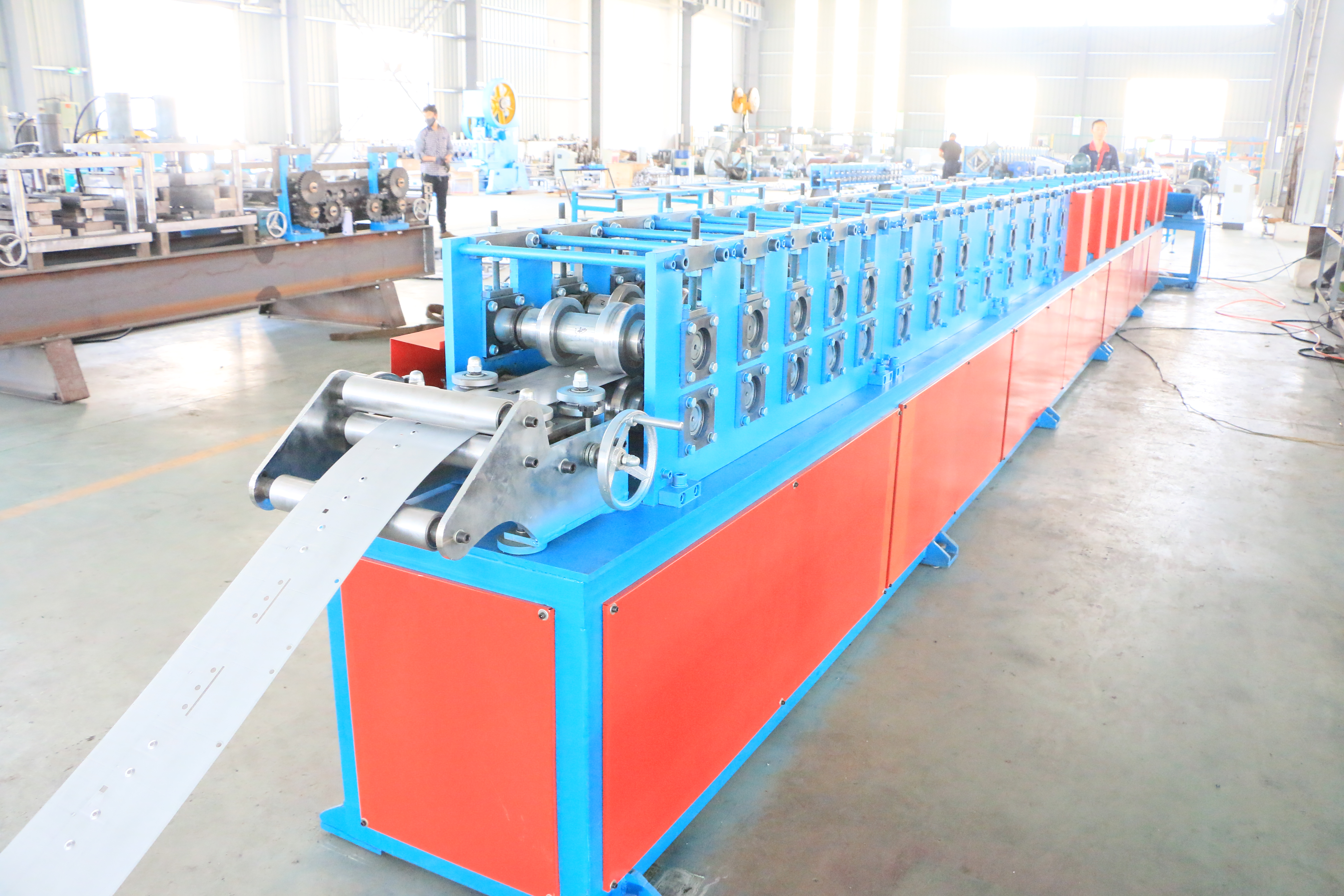

| Roll forming part | Dimensions for rollformer | 8000*1500*1500mm |
| Structure | Column | |
| Working Station | 18 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 80mm | |
| Driving System | Chain driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Cutting System | Flying saw cutting | |
