YD-BR-02
YTSING

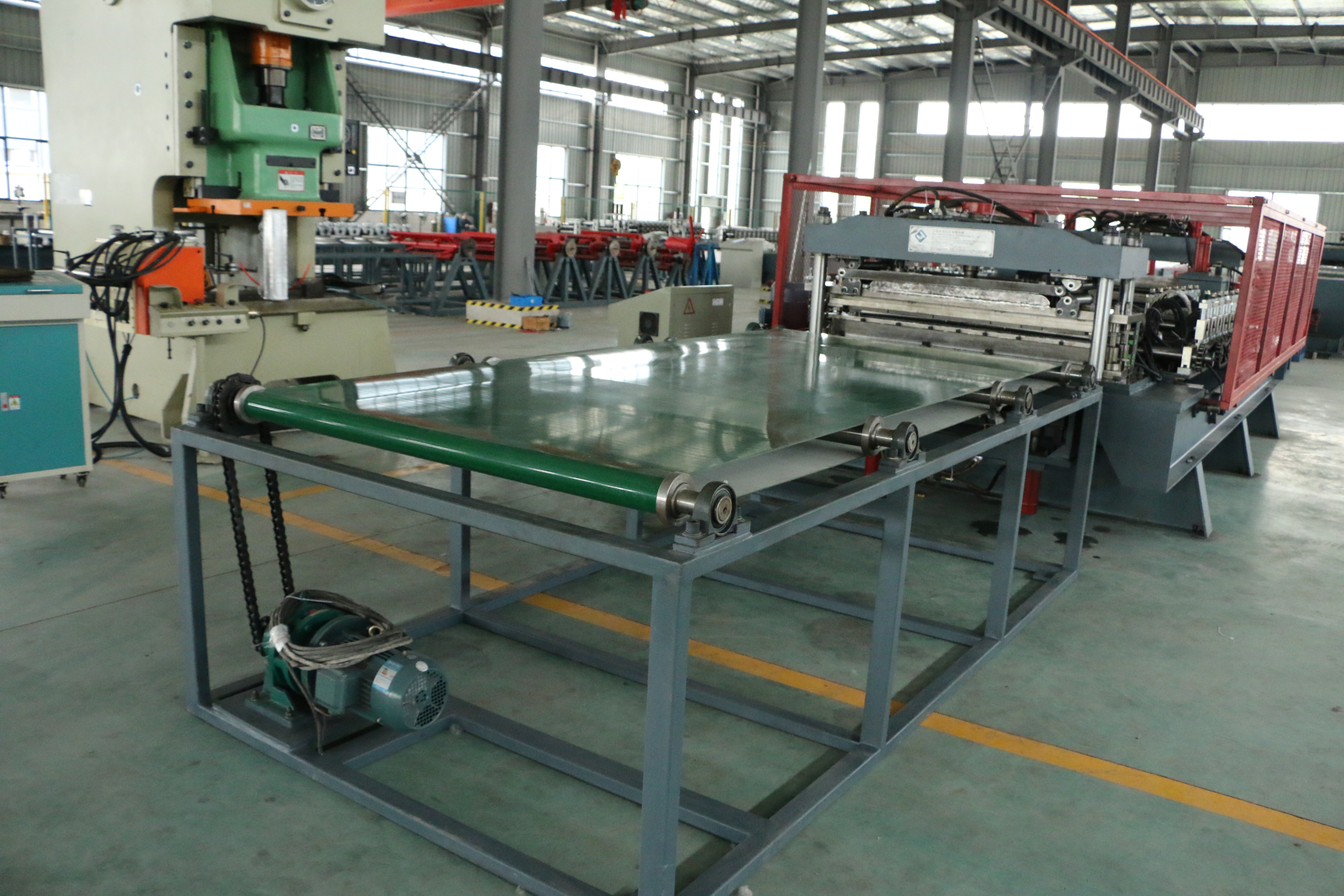

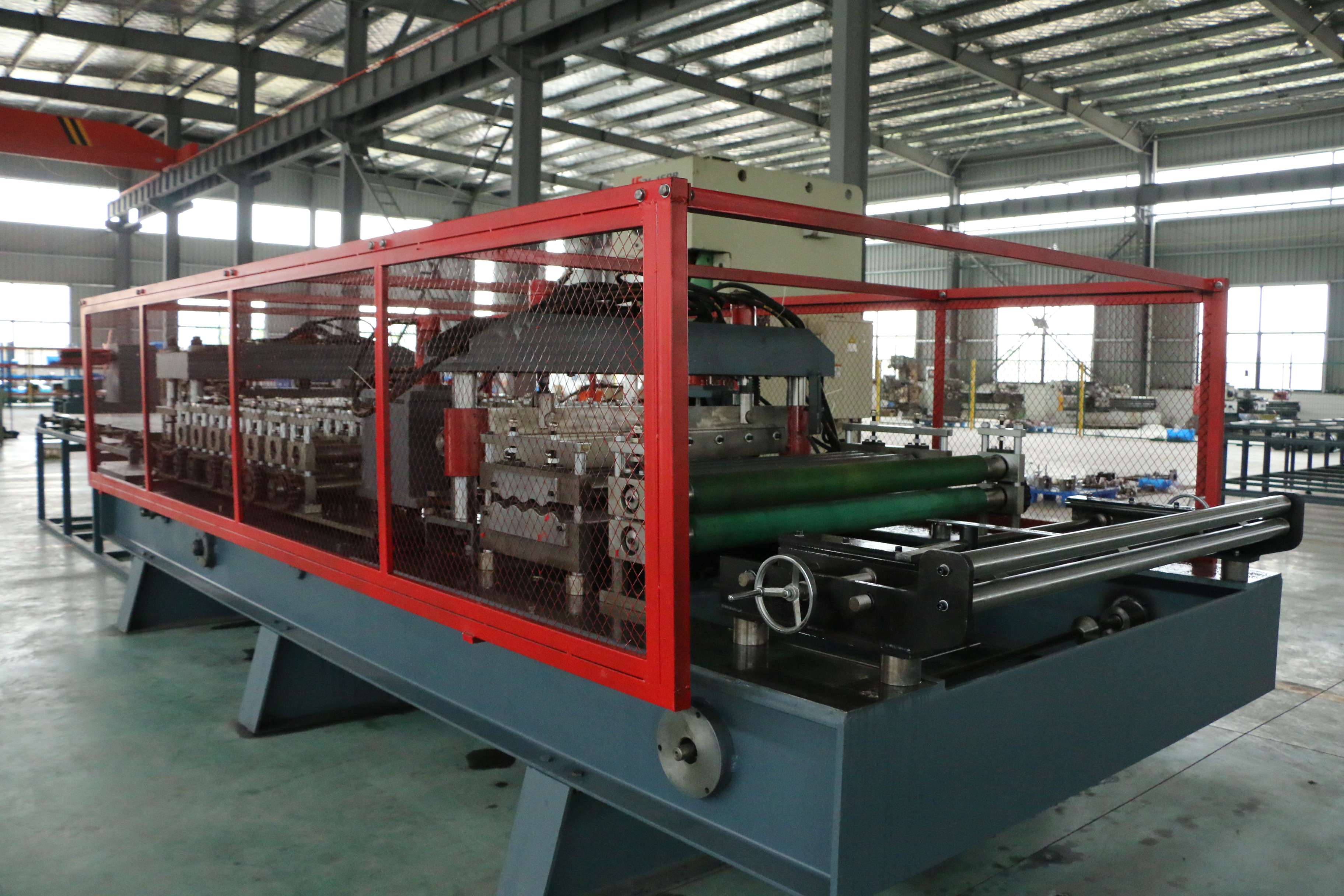

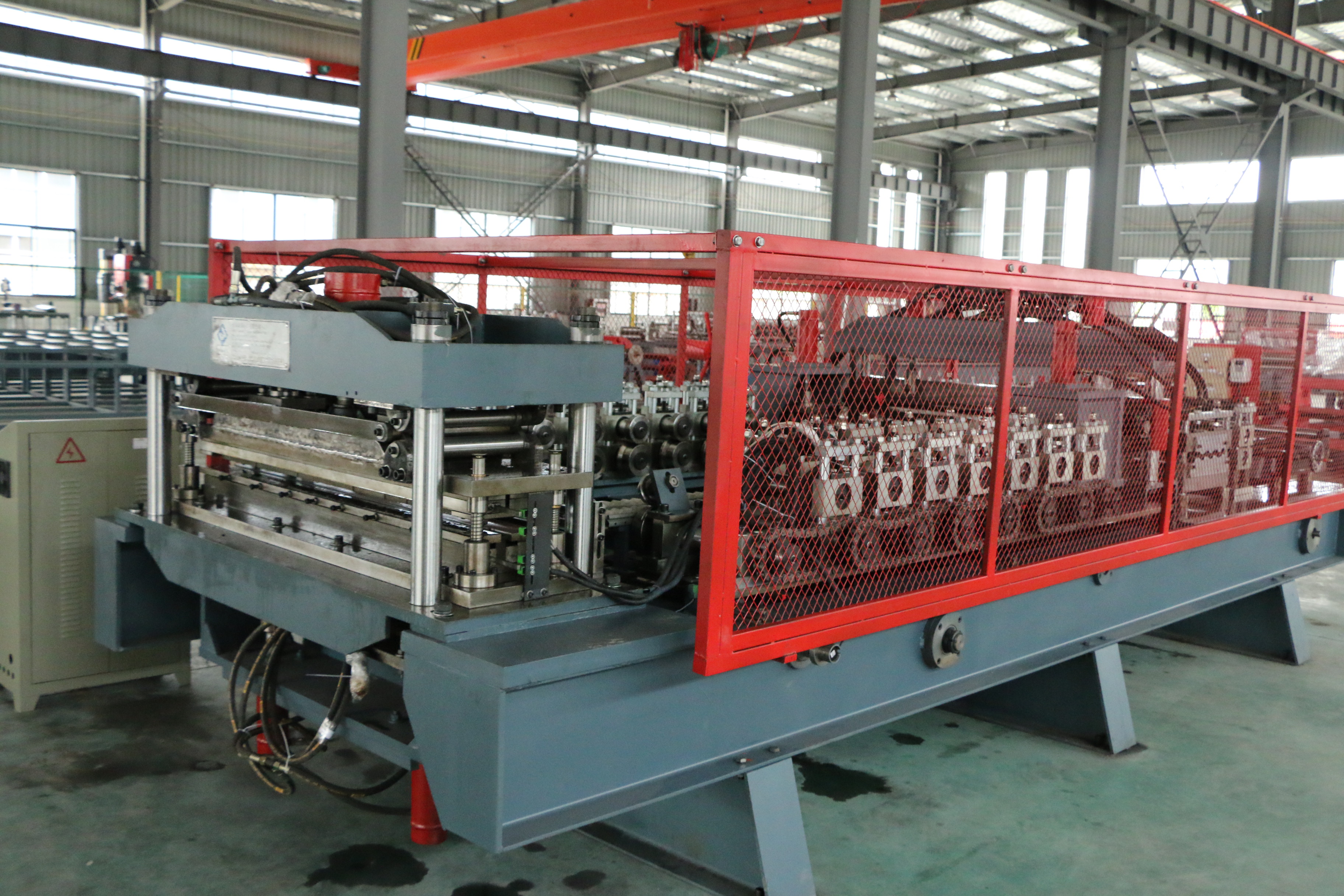

Box making machine punching rolling,cutting and four side bending machine

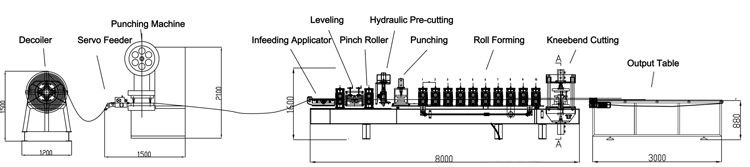

Flow chart
| Parameter | ||
| Finished Product | Thickness | 0.5-1.0mm |
| Material | PPGI | |
| Effective width | 300/600/900/1200 | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 5tons | |
| Mandrel expansion by | manual | |
| Punching unit | Dimensions for punching | 800*1200*2000mm |
| Punching machine | 63T press machine | |
| Punching Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 7.5KW | |
| Roll forming part | Dimensions for rollformer | 8000*2000*1500mm |
| Structure | Column | |
| Working Station | 8 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Chain driving | |
| Main power | 5.5KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 4.0KW | |
| Cutting and bending System | Hydraulic | |
