Non-Stop Stud And Track Roll Forming Machine

Views: 711     Author: Site Editor     Publish Time: 2019-09-11      Origin: Site

 Non-Stop Stud And Track Roll Forming Machine

The non-stop stud and track roll forming machine was shipped to Philippines in 2018, after one year, the client sent us high comments about this machine, good quality and high speed, he was very satisfied with this machine performance. The client also introduced us some other customer to cooperate with us, now he is our work partner also friends. We are so happy.Stud and track roll forming machine

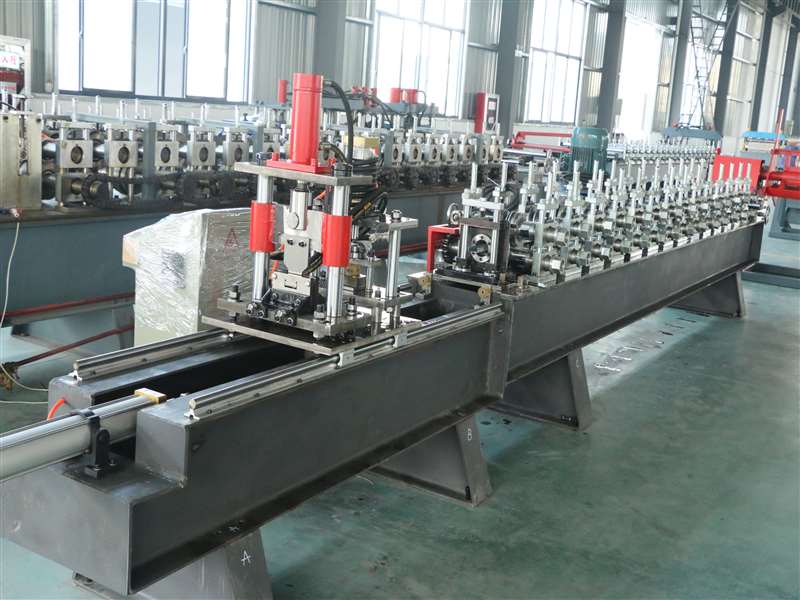

Non-Stop Stud And Track Roll Forming Machine IMG_7741_Jc

Straightening and Leveling

When is a Flattener Required?

Coils have always some degree of deviations out of straightness and flatness. The bend lines in the spin formed products frequently happen to be strong enough to minimize or get rid of the effect of the deviation inside the strip. For example , coils utilized for corrugated building, siding, and roofing panels are not forced to be flattened before throw forming. In some other conditions, a flattener is highly advised. For example , the rigidity on the thick and/or high strength materials makes it difficult or unattainable to feed the reel into the roll forming work, to weld coil ends together, or to pass the strip through a prepunching stop functioning.

Flattening.In the flattener, the fabric is bent up and down about rolls. The roll diameters are small enough to make a permanent deformation in the materials. This controlled permanent deformation will prevail over the long term deformation in the starting materials. Longitudinal bow and coils breaks can usually be totally eliminated and crossbow could be eliminated or reduced. Yet , the flattener will not get rid of edge waviness, center waviness, camber, and some other complications. Flatteners may have 3 or more to 11 rolls, nonetheless most of the flatteners used in jiggle forming lines have 5 various to 7 rolls. The flatteners are installed after the uncoilers. In the case of thin or limited material, the strip might be usually be fully taken away and crossbow can be taken out or reduced. However , the flattener will not eliminate border waviness, center waviness, helvétisme, and some other problems. Flatteners may have 3 to 11 rolls, but the majority of the flatteners used in roll developing lines have 5 to 7 rolls. The flatteners are installed after the uncoilers. With regards to thin or narrow materials, the strip may be “pulled through” the undriven flattener by the roll forming generator. However , in most cases, the flattener is driven. The powered flattener usually has a person pair of pinch rolls in advance and one pair following your flattening rolls. The little rolls can be used to pull the fabric off the uncoiler and give the strip into a cycle before the precutting shear, prepunching press, or roll previous. For a given material just like steel or aluminum, the permanent deformation will be a function of the flattener roll dimension to material thickness relation. To achieve the permanent deformation (flattening), thin material and comparatively small diameter rolls will be required. Small diameter rolls may be too weak for wide material. Therefore , depending on the construction, a flattener can be employed only for the specified material size range.Light keel roll forming machine
