Roll Forming Machine Construction Design Explain-Shaft

Views: 1052     Author: Site Editor     Publish Time: 2019-08-09      Origin: Site

Roll Forming Machine Construction Design Explain-Shaft

The development of the cantilevered shafts as well as the operator side of the two-end-supported shafts are similar. However , in order to save space, the rolls around the cantilever shafts are frequently kept by the countersunk screws, threaded into the center of the shafts. A typical linkage type gear-box stand is shown Beneath.

profile roll forming

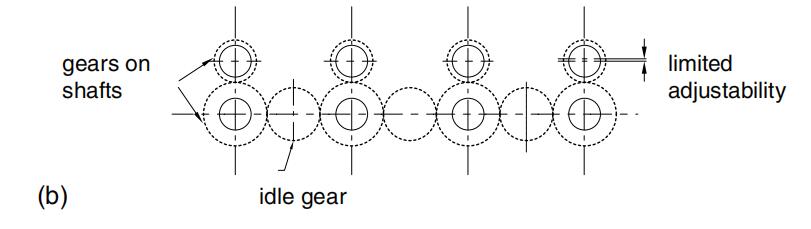

Shafts can be driven simply by spur gears, chain, or perhaps universal joint.

In these cases, the very best and bottom shafts could be identical except the operator-side threads at the end of the shafts. Experience shows that if almost all threads are righthanded (RH), then the nuts either at the very top or at the bottom level shafts will become loose. To avoid this issue, all the shafts at 1 level have right-handed with the other level left-handed (LH)threads and nuts because shown in steel roll forming machine price. The path of thread is always reverse to the direction of base rotation; that is, if during roll forming, the canal rotates counterclockwise, then RH nuts are required (tightened clockwise).

profile roll forming

If the shaft rotates clockwise, then the nuts must be stiffened counterclockwise (LH thread). This kind of requirement makes the roll developing machine unidirectional. In other words, the roll forming machine (observing from the operator side) may run only from left to right, or from directly to left. Lock nuts, hydraulic nuts, and other devices usually do not solve the problem if the move forming machine is within the wrong direction. The shafts can have fixed or perhaps variable roll space profile roll forming. The operator side of the set roll space shaft includes a smaller diameter part best suited into the bearing

profile roll forming

On adjustable roll space shafts, the ID of the needle bearings fit the shafts any kind of time position.

This allows moving the stand to different location over the shafts on forming machine price. Moving the operator-side stand closer to the drive-side stand reduces the base deflection, permitting to move form narrower but thicker/higher strength materials. The tensions generated by the axial causes and by the torque within the shafts are usually negligible. In very short shafts, the forces required to form the materials, which separate the shafts, may create substantial shear stresses, but in most cases, these types of stresses are secondary towards the stresses created by the twisting moments deflecting the shafts. Therefore , practically all shafts are designed for limited bending (deflection). Bending above the permitted limit creates dimensional problems inside the products. Normal use will never permanently deform the shafts, but abuse can cause complications.
