Hot Sale High Configuration No Need Engineer Come To Factory For Installation Roof Tile Roll Forming Machine

Views: 1219     Author: Site Editor     Publish Time: 2021-01-07      Origin: Site

Machine Details As Below:

Total power required

18.5 KW

Dimensions(L*W*H)

13.6m*1.5m*1.6m whole line

Overall packing shipment

two 40ft containers

Working hours per day

8 to 16 hours

Set up time

15 min

Line direction

Left to right while facing operator panel

Machine frame

H-BEAM frame

Variable line speed

20mtr./min.(not including cut)

Material loading system

Automatically

Accuracy level

Profile dimension +/- 0.5 mm


Cut length: +/-1.5-2.0 mm

PLC

Siemens

Touch screen

Siemens

Transducer

Yaskawa

Encoder

KOYO

Other electronic parts

Schneider

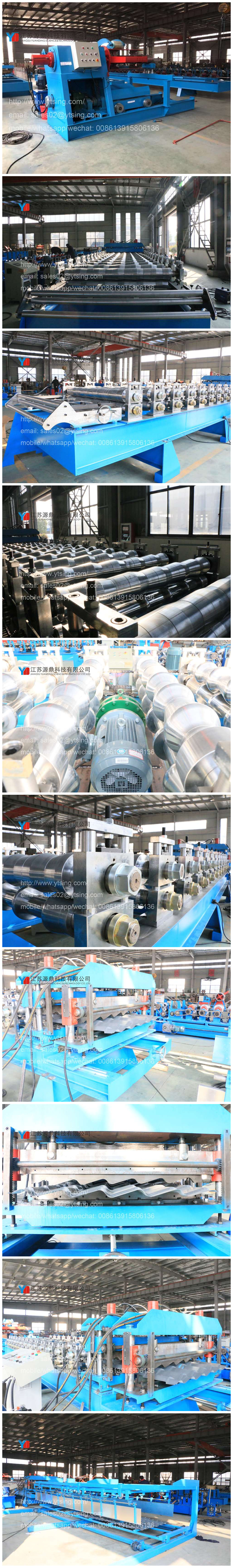

A: 10 Tons Hydraulic Powered un-coiler With Coil Cart

B: Feeding Applicator

C: Roll Forming Unit

D: Hydraulic Pressing

E: Hydraulic cutting

F: Auto-Stacker

未命名_副本
